Clean Engine Crankcase Vent Tube

Service Interval-1000 Hours



causym CAUTION: Reduce compressed air to less than 210 kPa (2 bar) (30 psi) when using for cleaning purposes. Clear area of bystanders, guard against flying chips and wear personal protection equipment, including eye protection.

1. Locate crankcase vent port (A) on top right-hand side of engine.

2. Remove crankcase vent tube (B).

3. Wash in solvent or blow clean with compressed air. Inspect tube for damage, replace if necessary.

4. Install vent tube. Make sure vent tube is not kinked or pinched.

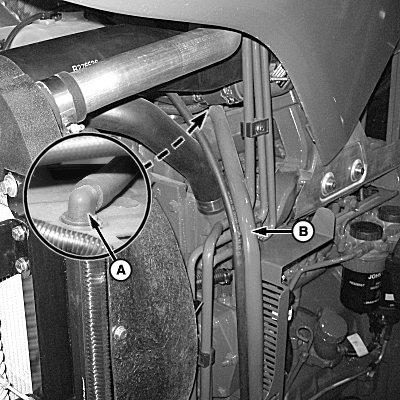

P15298

Left-Hand Side Shown


A-Crankcase Vent Port
B-Crankcase Vent Tube

NS43404,00004E2 -19-26MAR08-1/1
