Adjust Hand Throttle Friction

Adjust spring tension by loosening or tightening cap screw and lock nut (A) until throttle lever movement is smooth throughout range of travel with only slight drag.

Adjust throttle friction cap screw until specified amount of resistance is measured at throttle lever knob.

Specification

Throttle Friction Cap Screw -Resistance 49 N (11 lb-force)

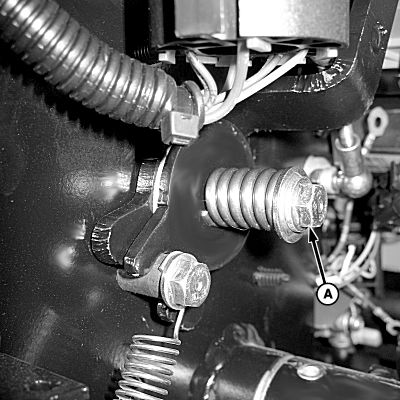

A-Cap Screw and Lock Nut

P14829

Under Dashboard

NS43404,00004EC -19-24MAR08-1/1
