Keep Cab Protection System Installed Properly

Service Interval-250 Hours



causym CAUTION: Make certain all parts are installed correctly if cab protection system is loosened or removed for any reason. Tighten mounting cap screws to specification.

The protection offered by cab protection system will be impaired if cab protection system is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling, or cutting. A damaged cab protection system should be replaced, not reused. Any alteration to the cab protection system must be approved by the manufacturer.

When installation of equipment on a machine necessitates loosening or removing cab protection system, mounting cap screws should be tightened to specification

Lift up rubber floor mat and pry out plugs (D) to access FRONT mounting hardware.

Check front and rear mounting hardware (A-C) for proper torque.

Specification

Cab Protection System Mounting Cap Screws -Torque 220 N·m (162 lb-ft)


A-Cap Screw
B-Washer
C-Isolator
D-Plug

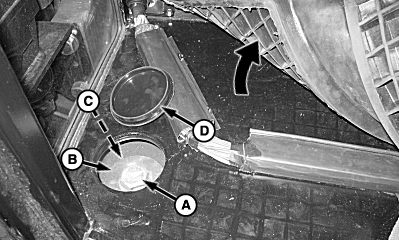

P14496

Front Cab Mount (Left-Hand Side)

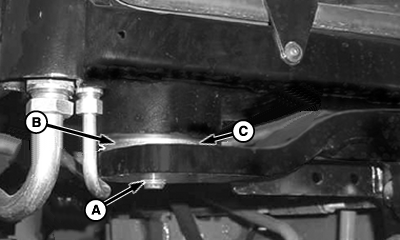

P14497

Front Cab Mount (Right-Hand Side)

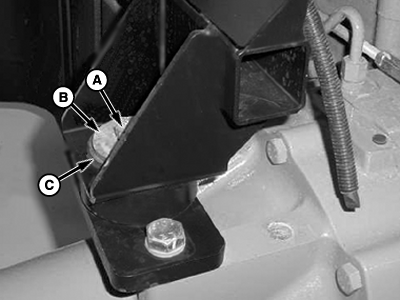

P14498

Rear Cab Mount (Left-Hand Side)

NS43404,00004F1 -19-13FEB08-1/1
