Check Engine Oil Level

If engine has been running, turn speed down to low idle and let it run for 2-3 minutes. Stop engine and wait 2-3 minutes.

NOTE: Make sure to push dipstick all the way in to check oil.

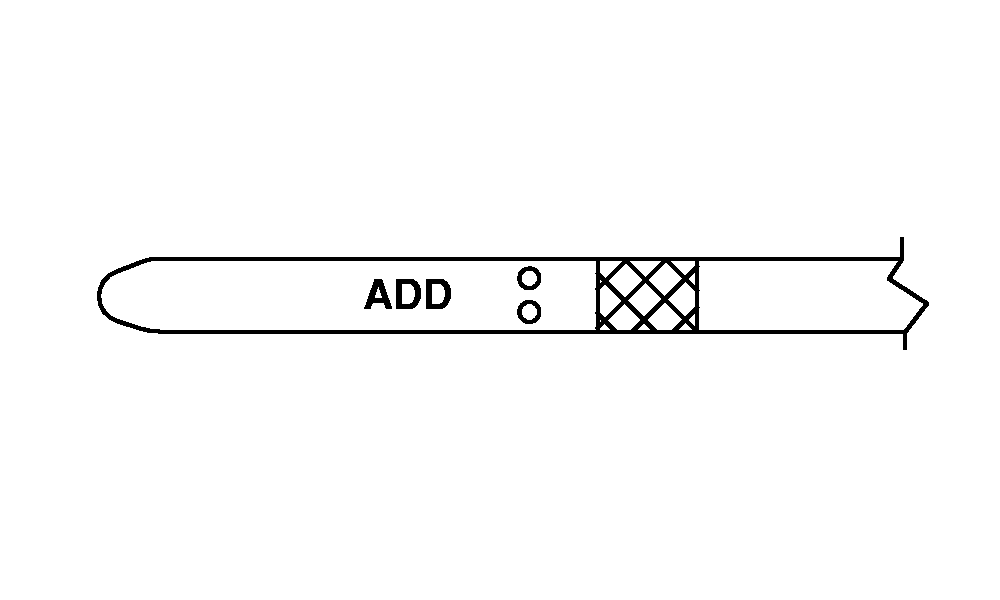

Oil levels within the crosshatch are considered in the acceptable operating range. Cross-hatch area is considered FULL.

2. Remove dipstick (A), wipe off and reinsert fully.

3. Remove again and locate oil level.

4. If oil does not show in crosshatched area of dipstick, add through filler hole (B).

5. Repeat procedure until adequate oil level is achieved. DO NOT overfill.

IMPORTANT: Do not operate engine with oil level below the "ADD" mark on dipstick.

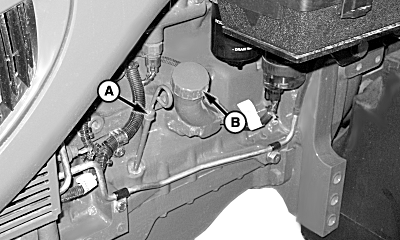

A-Engine Oil Dipstick
B-Engine Oil Filler Hole

NS43404,00004F3 -19-20MAR08-1/1
