Replace Transmission-Hydraulic Oil Filter

Service Interval
Initial-100 Hours
Regular-500 Hours



NOTE: Replace hydraulic filter housing and filter as a complete assembly.

1. Remove filter housing assembly (A) and filter seal (B).

2. Discard filter housing assembly (A) and O-ring seal (B).

3. Inspect new filter assembly and seal for any possible damage.

4. Apply hydraulic oil to new filter O-ring seal (B) and install on filter assembly.

5. Install new filter assembly and tighten to specification.

Specification

Hydraulic Oil Filter -Torque 24 N·m (212 lb-in)

6. Run engine for five minutes.

7. Shut off engine and check oil level. Add hydraulic as required. (See CHECK TRANSMISSION-HYDRAULIC OIL LEVEL in this section.)

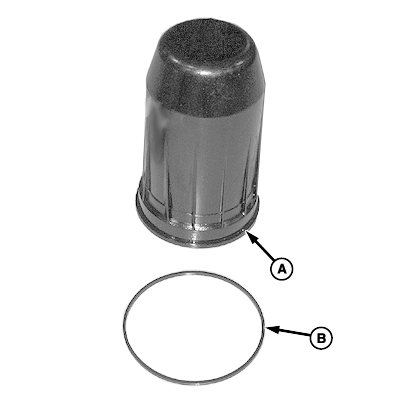

A-Filter Housing Assembly
B-Filter O-Ring Seal

P15394
P15271

NS43404,00004F6 -19-07APR08-1/1
