Lubricate Steering Linkage

Service Interval-Weekly / 50 Hours*
* Daily / 10 Hours if operated in extremely wet or muddy conditions



2WD Axle

Apply several shots of grease to steering spindle fittings, on both left and right-hand sides.

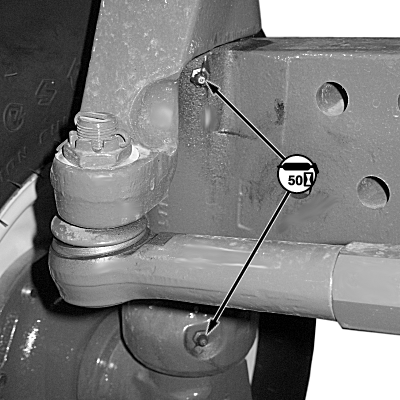

P14506

Left-Hand Side Shown

NS43404,00004F7 -19-26MAR08-1/2

MFWD Axle

Service Interval-Weekly / 50 Hours*
* Daily / 10 Hours if operated in extremely wet or muddy conditions



Turn steering wheel full left or right to access lube fittings.

  • Left-hand turn
    • Front fitting on left-hand side
    • Rear fitting on right-hand side
  • Right-hand turn
    • Rear fitting on left-hand side
    • Front fitting on right-hand side

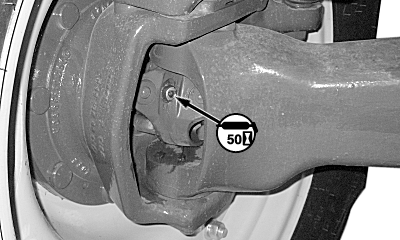

P14504

Right-Hand Side-Front

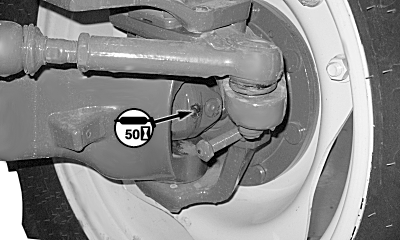

P14505

Right-Hand Side-Rear
