Check MFWD Axle Housing Oil Level

Service Interval-250 Hours



1. Park tractor on level surface.

2. Remove plug (A). Oil level should be approximately 12 mm (1/2 in.) below edge of plug hole.

3. If low, add oil through same hole. John Deere Standard JDM J20C oil is recommended. (See MFWD AXLE AND WHEEL HUB OIL in Fuels, Lubricants and Coolant section.)

4. Apply pipe sealant with TEFLON ® , or equivalent, to threads of plug.

5. Install plug and tighten to specifications.

Specification

Plug-to-Axle Housing -Torque 150 N·m (110 lb-ft)

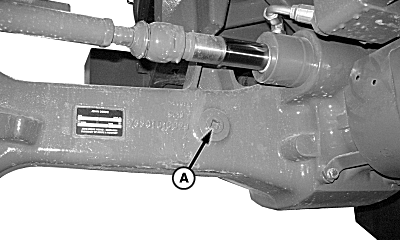

P14512


A-Plug

TEFLON is a trademark of Du Pont Co.

NS43404,00004FB -19-16FEB08-1/1
