Change MFWD Axle Wheel Hub Oil

Service Interval
  Initial-100 Hours
  Regular-1000 Hours



NOTE: Approximate wheel hub oil level is 0.8 L (0.85 qts).

1. Park tractor on level surface.

2. Rotate wheel until drain/fill port plug (A) is at bottom of hub.

3. Remove plug and drain oil.

4. After oil has drained, rotate wheel until drain/fill port is positioned horizontally.

5. Add oil until level is just below edge of hole. John Deere Standard JDM J20C oil is recommended. (See MFWD AXLE AND WHEEL HUB OIL in Fuels, Lubricants and Coolant section.)

6. Apply pipe sealant with TEFLON ® , or equivalent, to threads of plug.

7. Install plug and tighten to specifications.

Specification

Plug-to-Hub -Torque 150 N·m (110 lb-ft)

8. Repeat procedure on opposite wheel hub.

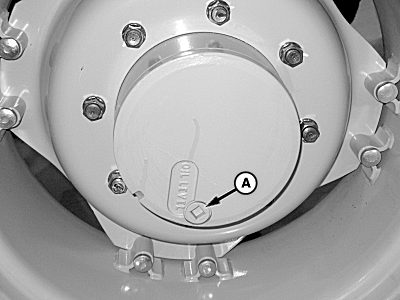

P14517


A-Drain/Fill Port Plug

TEFLON is a trademark of Du Pont Co.
