Check Cooling System for Leaks

Service Interval-500 Hours

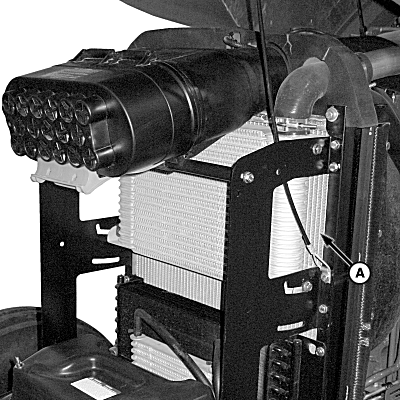

1. Check around base of radiator (A) for pinholes, cracks or any sign of coolant leakage.

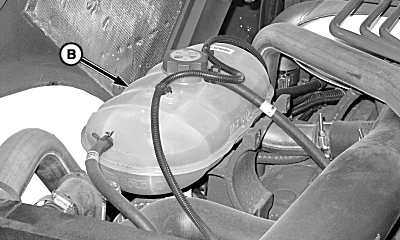

2. Inspect coolant reservoir (B) for holes, cracks or any sign of coolant leakage.

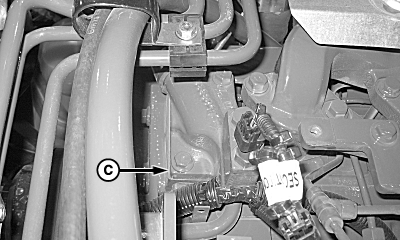

3. Inspect area around thermostat housing (C) for cracks, or any sign of coolant leakage.


A-Radiator
B-Coolant Reservoir
C-Thermostat Housing

P14518

OOS Shown

P15302
P14521

Left-Hand Side of Engine

NS43404,0000506 -19-26MAR08-1/1
