Electrical Service Precautions

causym CAUTION: Keep all sparks and flames away from batteries, as gas given off by electrolyte is explosive. When using a booster battery, follow instructions in Operating the Engine section.

To avoid shocks and burns, disconnect negative (-) cable (B) before servicing any part of the electrical system.

Keep battery cover (not shown) and all electrical shields in place.

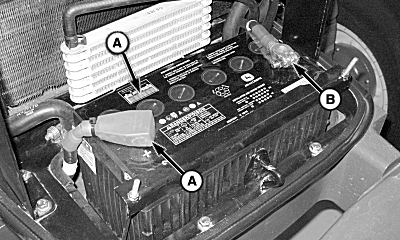

A-Positive (+) Battery Cable
B-Negative (-) Battery Cable

TS204
P14567

NS43404,000050D -19-21FEB08-1/1
