Replace Alternator/Fan Belt

2. Release tension on belt using a 1/2 in. drive long-handle breaker bar. Remove belt (A) from alternator pulley over fan.

3. Install new belt in reverse order of removal.

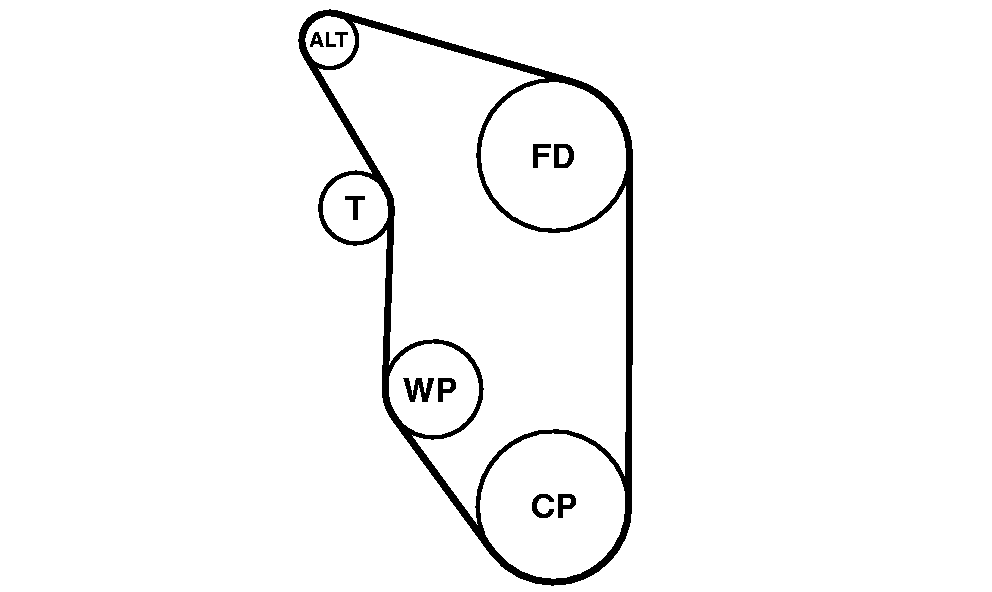

A-Belt
ALT-Alternator
COMP-Compressor (Air Conditioning System)
CP-Crankshaft Pulley
FD-Fan Drive Pulley
IP-Idler Pulley
T-Tensioner Idler
WD-Water Pump

NS43404,0000511 -19-21FEB08-1/1
