Remove Battery

CAUTION: To avoid sparks, disconnect negative cable (A) first and connect it last.

1. Raise hood.

2. Remove battery cover.

3. Disconnect negative (-) battery cable (A).

4. Disconnect positive (+) battery cable (B).

5. Remove nuts (C) and bracket (D).

6. Remove battery (E) from machine.

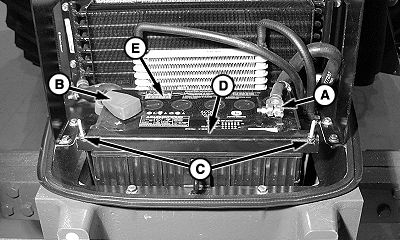

A-Negative Terminal (-)
B-Positive Terminal (+)
C-Nuts
D-Bracket
E-Battery

NS43404,0000516 -19-21FEB08-1/1
