Access Fuses and Relays

    To remove fuse box cover:

  • OOS - Pinch tabs and pull off cover (A).
  • Cab - Pry off cover (B).

Fuse Rating Color
10 Amp Red
20 Amp Yellow
30 Amp Green



IMPORTANT: Do not replace original fuse with higher rated fuse or machine damage may occur.

If original size fuse will not carry electrical load and continues to blow contact your John Deere dealer.


A-Fuse Box Cover (OOS)
B-Fuse Box Cover (Cab)

P14570

OOS Fuse Box Location

P14571

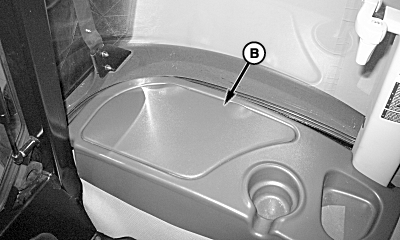

Cab Fuse Box Location
