Replace Tail and Turn Light Bulbs

NOTE: Procedure is the same for both sides of machine.

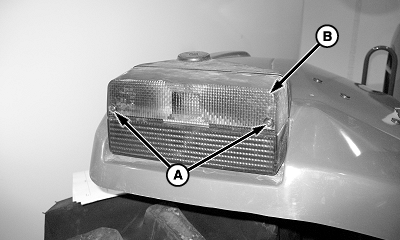

1. Remove screws (A) and lens (B).

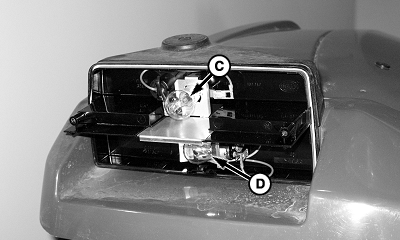

2. Gently push and turn bulb (C) and (D) to remove.

3. Gently push and turn new bulb to install.

4. Reinstall cover (B) with previously removed screws (A).

A-Screws
B-Lens
C-Turn Signal Bulb
D-Tail Light Bulb

NS43404,0000524 -19-17APR08-1/2

NOTE: Procedure is the same for both sides of machine.

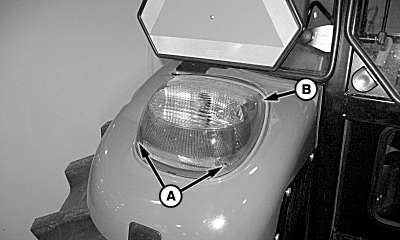

1. Remove screws (A) and cover (B).

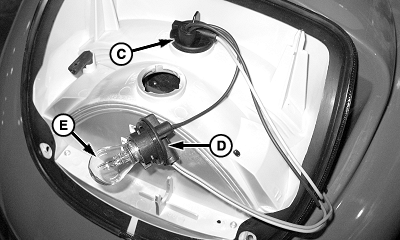

2. Twist and pull to remove sockets (C) and (D) from lens.

3. Gently push and turn bulb (E) to remove.

4. Install new bulb.

5. Reinstall sockets to lens.

6. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

7. Reinstall lens (B) with previously removed screws (A).

A-Screws
B-Lens
C-Turn Signal Socket
D-Tail Light Socket
E-Bulb

NS43404,0000524 -19-17APR08-2/2
