Replace Headlight Element

CAUTION: To guard against personal injury, wear protective eyeglasses and clothing when handling bulb. Turn power off when installing and before removing bulb. Dispose of bulb with care.

Allow bulb to cool before removing.

Read and follow all bulb manufacturer's installation instructions.

1. Raise hood.

2. Remove connector (A).

3. Remove retaining clip (B).

4. Remove and discard old bulb (C).

5. Insert new bulb and close retaining clip.

6. Reattach connector (A) to new bulb and close hood.

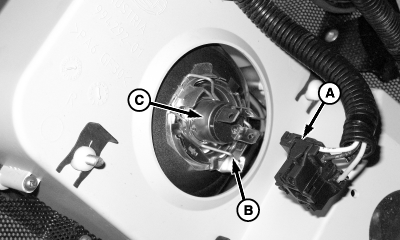

A-Connector
B-Clip
C-Bulb

NS43404,000054D -19-20NOV07-1/1
