Drain Water and Sediment From Fuel Filters

2. Connect a small hoses to end of drains (B).

3. Place a suitable container under drains.

4. Open fuel filter drains (B) to drain moisture and sediment from filters (C and D).

5. Tighten drains when fuel runs clear.

6. Remove drain hoses and connect wiring harness.

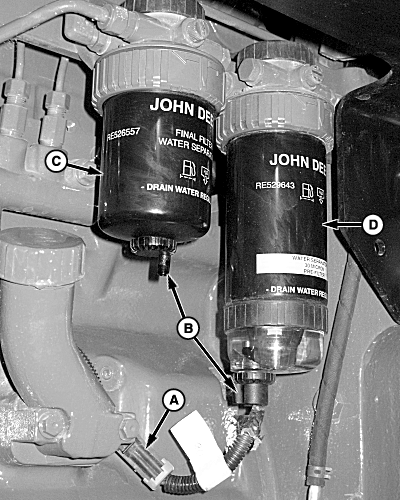

A-Wiring Harness
B-Drains
C-Final Fuel Filter
D-Primary Fuel Filter

NS43404,0000561 -19-21FEB08-1/1
