Replace Roof Hazard Light Bulb-Cab

NOTE: Procedure is the same for all warning lights on machine.

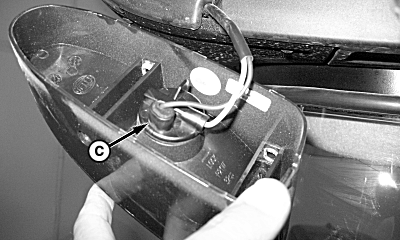

2. Twist and pull to remove bulb socket (C) from lens.

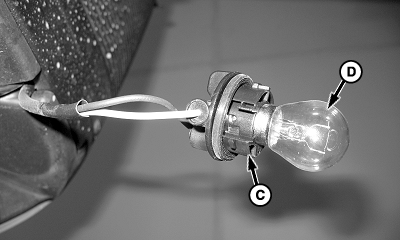

3. Gently push and turn bulb (D) to remove.

4. Install new bulb.

5. Reinstall bulb sockets to lens.

6. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

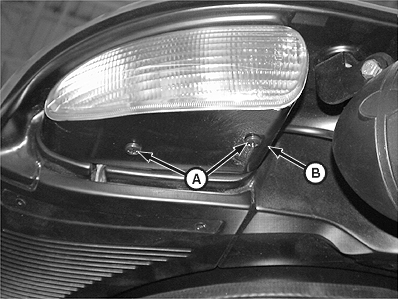

7. Reinstall lens (B) with previously removed socket head screws (A).

A-Socket Head Screws
B-Lens
C-Bulb Socket
D-Bulb

NS43404,0000566 -19-17APR08-1/1
