Replace Floodlight Element-Cab

2. Remove screws (B), retaining ring (C) and floodlight bezel (E) from housing.

3. Disconnect connectors (D).

4. Release clip. Remove and discard old bulb.

5. Inspect rubber seal for cracks that may cause leaks. Replace if necessary.

6. Slide new bulb into floodlight bezel (E) and reapply clip.

7. Connect bezel to connector.

8. Reinstall bezel, screws, and cover.

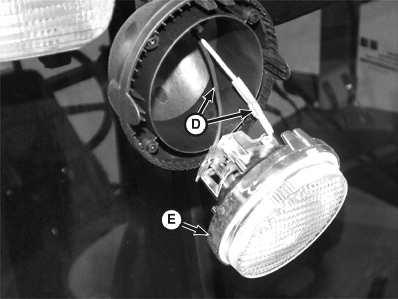

A-Cover
B-Screw (4 used)
C-Retaining Ring
D-Wiring Connector
E-Floodlight Bezel

NS43404,0000567 -19-15APR08-1/1
