Adjusting Seat (If Equipped)

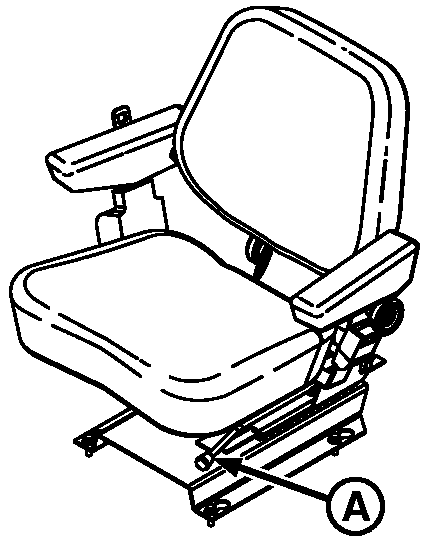

Move lever (A) sideways and slide seat closer to, or away from, dash panel and controls.

A-Seat Adjustment Lever-Fore-and-Aft

OU1092A,00001CB -19-09APR08-1/2

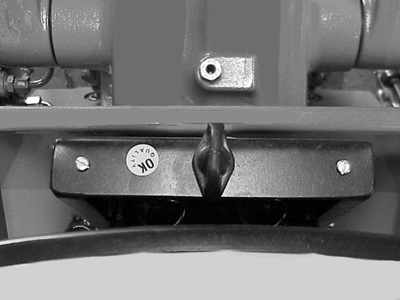

Adjustment knob is located behind seat back.

Turn adjustment knob as needed for a firm or soft ride. Turning the knob clockwise stiffens seat cushion and counterclockwise softens it. Weight markings are suggested settings according to operator's weight.

A-Seat Adjustment Knob

OU1092A,00001CB -19-09APR08-2/2
