Check Instruments After Starting (Dry Clutch Tractors)

IMPORTANT: If coolant temperature gauge (A) goes into the red zone, or either oil pressure or charging system indicators (B or C) remain on, stop engine and determine the cause.


A-Coolant Temperature Gauge
B-Oil Pressure Indicator
C-Charging System Indicator

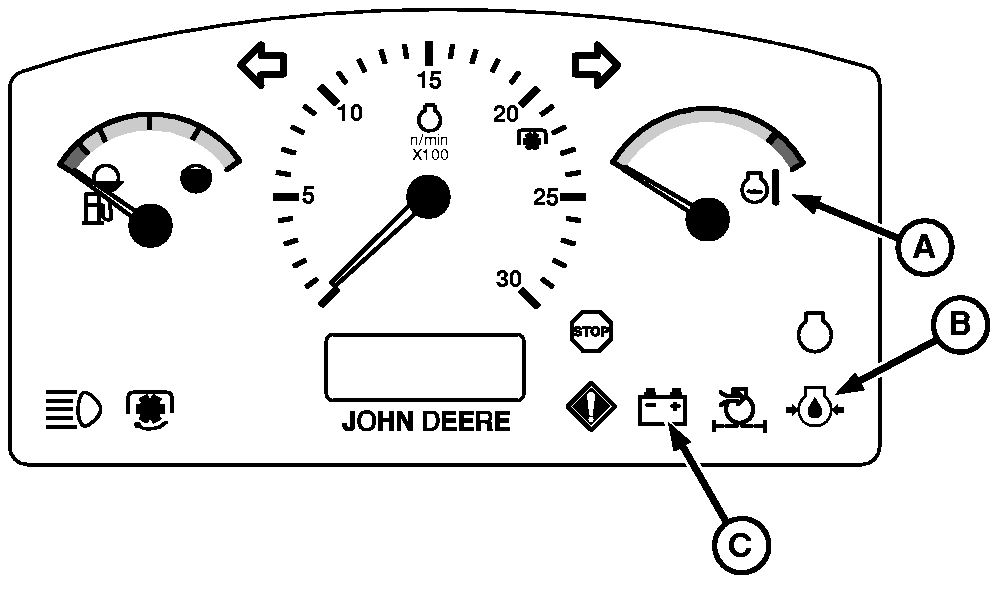

P15421

Instrument Panel Dry Clutch Tractors

OU1092A,00001E9 -19-10APR08-1/1
