Clean Cab Air Filters

Recirculation Filters (Inside Cab)

Service Interval-250 Hours*
* Interval can vary according to operating conditions



OU1092A,00001F6 -19-17APR08-1/3

causym CAUTION: The air quality system air filters are not designed to filter out harmful chemicals. Follow the instructions in the implement operator's manual and those given by the chemical manufacturer when using agricultural chemicals.

NOTE: There are filters on BOTH sides of cab. Left-hand side is shown.

1. Pry off cover (A). (Pull down along window.)

2. Remove wing screw (B), retainer (C) and filter (D).

3. Inspect filter for holes or damage. Inspect rubber seal for cracks or wear. Replace as necessary.

NOTE: Do not clean filter with water or compressed air. Cleaning the filter is not recommended and should be replaced as needed.

4. Replace filter when it becomes dirty. It may require replacing filter more often in dusty conditions.

5. Install filter with rubber seal toward retainer (C).

6. Install retainer, wing screw and cover.

7. Repeat procedure on opposite side.


A-Cover
B-Wing Screw
C-Filter Retainer
D-Filter

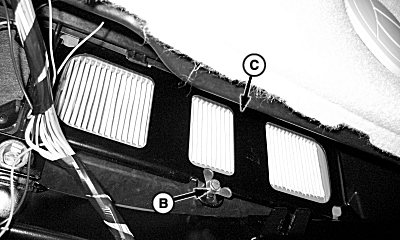

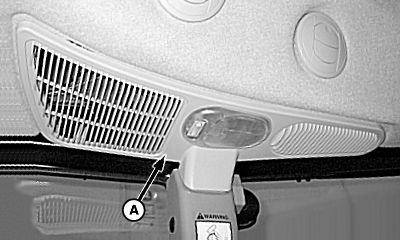

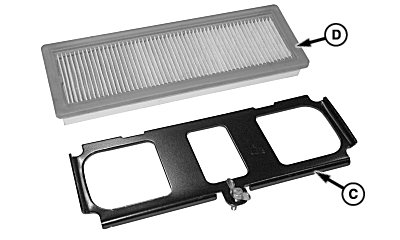

P14487
P14488
P14490

OU1092A,00001F6 -19-17APR08-2/3

Fresh Air Filters (Outside Cab)

1. Remove two wing screws (A) and cover (B).

2. Remove wing screws (C), retainer (D) and filter (E).

3. Inspect filter for holes or damage. Inspect rubber seal for cracks or wear. Replace as necessary.

NOTE: Do not clean filter with water or compressed air. Cleaning the filter is not recommended and should be replaced as needed.

4. Replace filter when it becomes dirty. It may require replacing filter more often in dusty conditions.

5. Install filter with rubber seal toward cab.

6. Install retainer and wing screws.

7. Install cover and wing screws.

8. Repeat procedure on opposite side.


A-Wing Screws
B-Filter Cover
C-Wing Screws
D-Filter Retainer
E-Filter

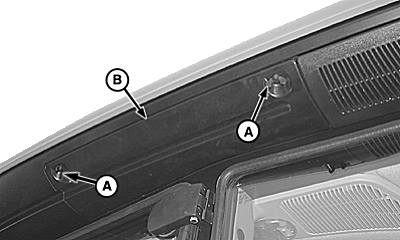

P14491

Under Roof, Above Cab Door

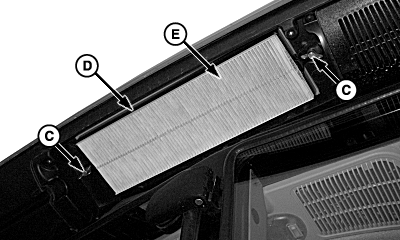

P14489

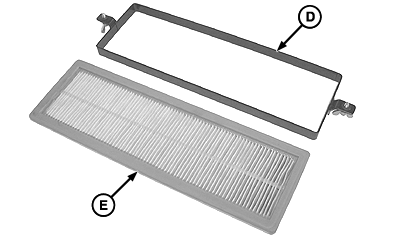

P14492

OU1092A,00001F6 -19-17APR08-3/3
