Replacing Controls Illumination Light Bulb (Cab)

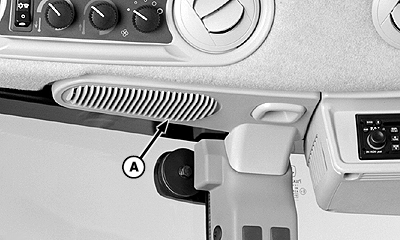

1. Pry off panel (A).

2. Rotate light bulb retainer (B) counterclockwise approximately 1/4 turn and remove.

3. Pull out light bulb.

4. Install new bulb in reverse order of removal.


A-Panel
B-Light Bulb Retainer

LV9515
LV9598

OUMX005,0001960 -19-31JUL04-1/1
