Replacing Rotary Beacon Light Bulb (If Equipped)

causym CAUTION: Halogen bulbs contain gas under pressure. Handling a bulb improperly could cause it to shatter into flying fragments. (See HANDLING HALOGEN LIGHT BULBS SAFELY in this section.)

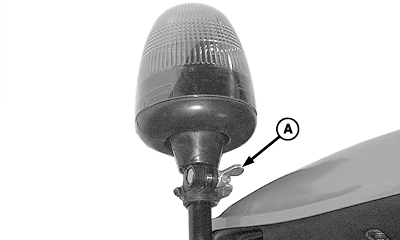

1. Loosen wing nut (A) and remove rotary beacon light assembly.

2. Install rubber cap (B).


A-Wing Nut
B-Rubber Cap

LV9693
LV9694

OUMX005,00019A1 -19-19AUG04-1/2

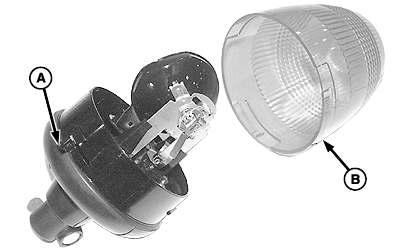

3. Depress tab (A) and rotate lens (B) counterclockwise to remove.

4. Pull tab (C) away from bulb.

5. Unlatch retaining spring (D) and remove light bulb (E).

6. Install new bulb in reverse order of removal.


A-Tab
B-Lens
C-Tab
D-Retaining Spring
E-Bulb

LV9695
LV9696
LV9697

OUMX005,00019A1 -19-19AUG04-2/2
