Using Hydraulic Motor Return Connection (If Equipped)

Some implements, such as a post pounder, require use of a high flow or fast return-to-sump connection.

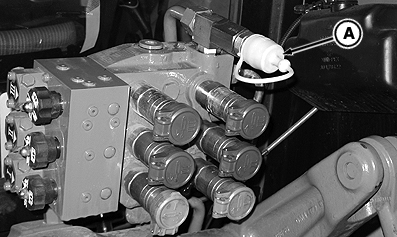

If a high flow return connection is needed, remove cap (A) on valve stack housing and attach hose fitting to connector.

Motor return parts are available from your John Deere dealer.

A-Motor Return Connector Cap

OUMX005,0001A04 -19-15APR08-1/1
