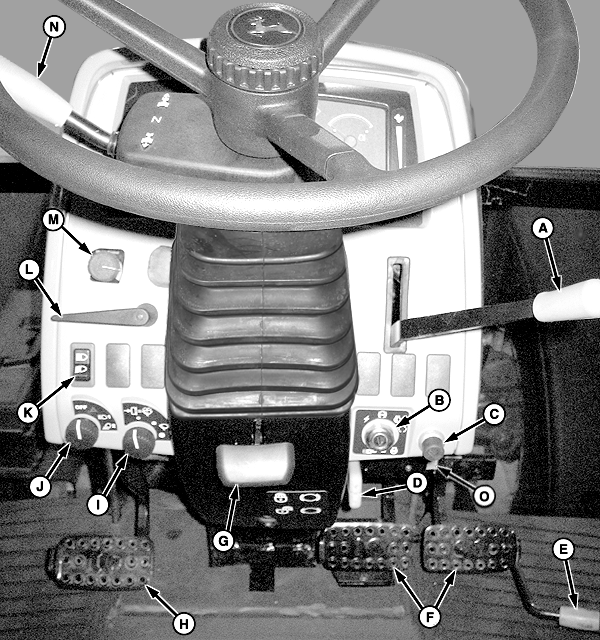

A-Hand Throttle
B-Ignition Switch
C-Horn Button
D-Parking Brake Lever
E-Foot Throttle

F-Brake Pedals
G-Steering Wheel Tilt Lever (If Equipped)
H-Clutch Pedal

I-Wiper Switch (Cab)
J-Light Switch
K-High/Low Beam Switch
L-Turn Signal Lever

M-Shuttle Control (If Equipped)
N-PowrReverser Lever
O-Brake Pedal Lock Lever

PowrReverser is a trademark of Deere & Company

OUMX005,0002901 -19-17APR08-1/1
