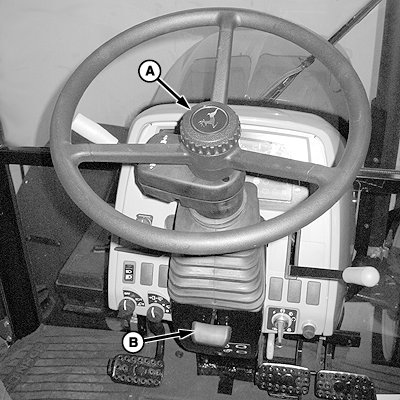

Adjusting Steering Wheel

Tilt: Lift lever (B) and move steering column to desired angle. Release lever to lock into position.

Wheel Height (Telescoping): Loosen ring (A) and raise or lower steering wheel to desired height. Tighten ring to lock into position.

A-Height Adjustment Ring
B-Angle Adjustment Lever

OUMX005,0002917 -19-29JAN08-1/1
