Operating Windshield Wiper and Washer

Rotate wiper switch (A) to move windshield wipers to OFF, SLOW or FAST position.

Push switch to activate windshield washer.

Fill reservoir (B) with non-freezing windshield washer fluid. Reservoir is located behind cab on inside of right rear fender.

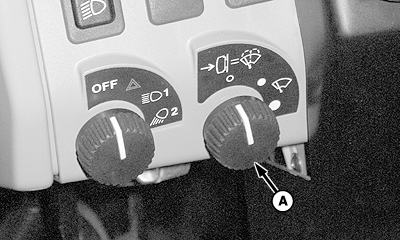

A-Windshield Wiper/Washer Switch

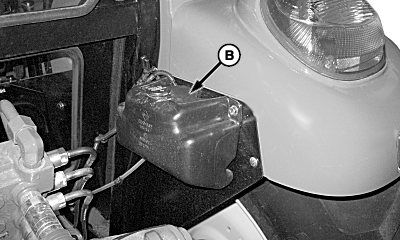

B-Washer Fluid Reservoir

P15226
P14855

Rear, Right-Hand Side

OUMX005,000291B -19-29JAN08-1/1
