Routing Cables and Harnesses

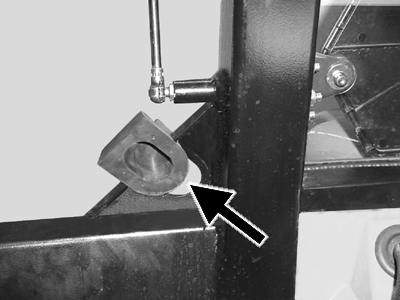

Rear window frame of cab has two openings, allowing cables/harnesses to be routed. Open the window and remove rubber plugs (A). Cut rubber plugs at the incisions provided, to allow cables/harnesses to be routed through the plugs. Connect the cable/harness ends, insert rubber plugs and close the window.

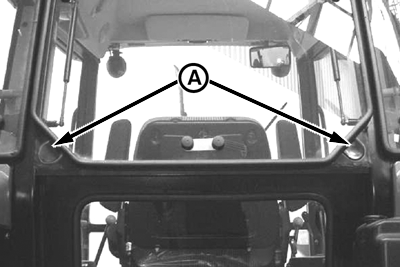

A-Rubber Plugs

OUMX005,000291C -19-29JAN08-1/1
