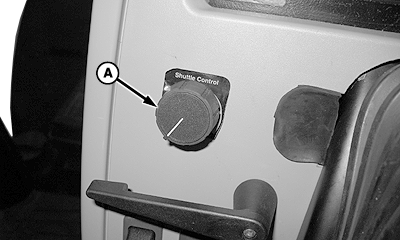

Using Infinitely Variable Shuttle (If Equipped)Infinitely variable shuttle (A) adjusts load take-up and acceleration when making directional changes with PowrReverser™ lever during repetitive cycle work (loader operation). In full left (counterclockwise) position (shown) load take-up and acceleration ramp-up are slow to respond. When operating with high load and ballast, turn control knob clockwise to speed-up acceleration and load take-up response. IMPORTANT: When operating in full right (clockwise) position on concrete or paved surfaces, premature tire wear can occur. |
|
OUMX005,0002925 -19-07APR08-1/1 |
