Adjusting Drawbar Side-to-Side

CAUTION: To avoid personal injury, use retaining pins to hold drawbar stationary when operating PTO-driven implements.

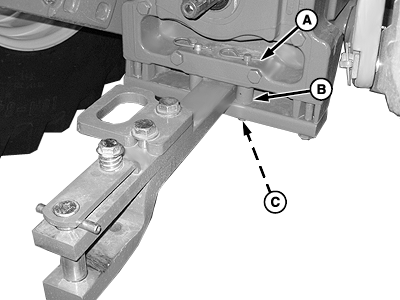

Right Side Swing: Support bottom of pin (C) and remove spring clip (A), pin and spacer (B).

Left Side Swing: Repeat procedure on left-hand side pin assembly.

Full Swing (side-to-side): Remove both pin assemblies.

A-Spring Clip
B-Spacer
C-Retaining Pin

OUMX005,0002927 -19-06FEB08-1/1
