SCV Control Levers and Couplers

NOTE: Lever location is the same for both Cab and OOS. Cab shown.

SCV levers control oil flow to hydraulic hose couplers at the rear of the tractor.

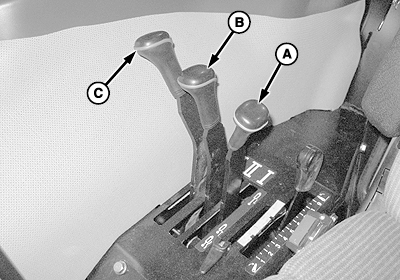

SCV I Lever (A) operates couplers (D).

SCV II Lever (B) operates couplers (E).

SCV III Lever (C) operates couplers (F).

A-SCV I Lever (Green)
B-SCV II Lever (Blue)
C-SCV III Lever (Brown) (if Equipped)

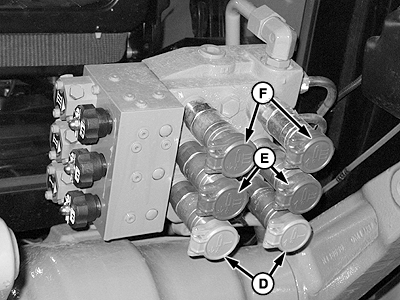

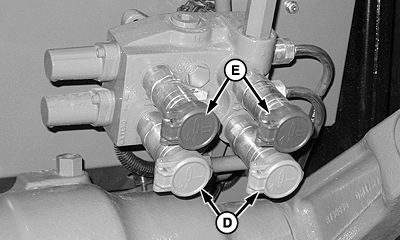

D-SCV I Couplers (Green Cover)
E-SCV II Couplers (Blue Cover)
F-SCV III Couplers (Brown Cover) (if Equipped)

OUMX005,000292B -19-25MAR08-1/1
