Connecting and Operating Single-Acting Cylinder

Single-acting cylinder should only be connected to EXTEND couplers (A).

IMPORTANT: Volume of oil required to extend cylinder will lower transmission-hydraulic oil level. With cylinder fully extended, check oil level and fill to proper level. (See CHECKING TRANSMISSION-HYDRAULIC SYSTEM OIL LEVEL in Lubrication section.)

Pull SCV control lever back to pressurize and extend single-acting cylinder.

Push SCV control lever full forward to "float" position to retract cylinder.


A-Extend Couplers

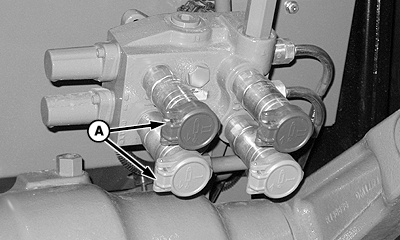

P15251

Two-Section Valve

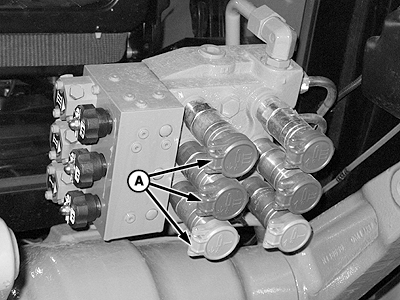

P15252

Three-Section Deluxe Valve (If Equipped)

OUMX005,0002930 -19-10FEB08-1/1
