Optimizing A/C and Heater Performance

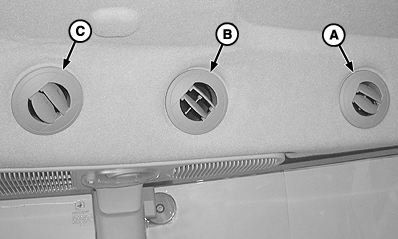

Adjust individual vents to target heating or cooling:

  • Position front vents (A) toward legs and mid-body.
  • Position middle vents (B) toward your head.
  • Position rear vents (C) toward your back.

    NOTE: For maximum cooling effect, turn heater temperature control knob (D) to full counterclockwise position.

Position all vents (A, B, and C) down to heat the floor and feet.


A-Front Vent
B-Middle Vent
C-Rear Vent
D-Heater Temperature Control Knob

LV10325
LV10326

OUO1080,00002AB -19-26MAR08-1/1
