Use Seat Belt and Foldable ROPS Properly (If Equipped)

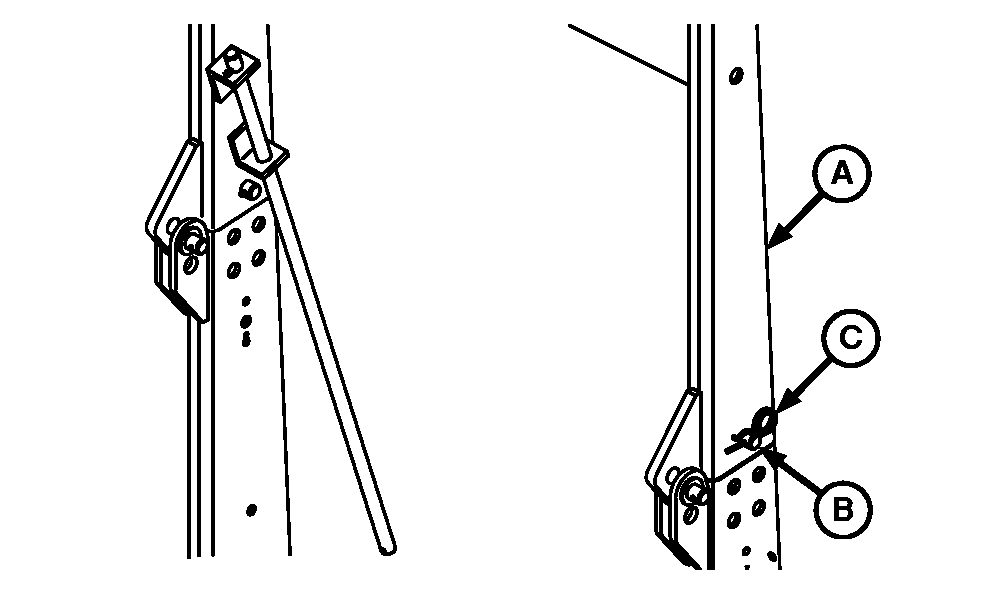

This tractor may be equipped with a foldable Roll Over Protective Structure (ROPS). The ROPS (A) should be kept in the "up" or extended position (as pictured) with retaining pins (B) and pin clips (C), except when it is necessary to fold it for low clearance operations. (See OPERATING FOLDABLE ROPS-IF EQUIPPED in Operator's Platform section for folding procedure.)

When the ROPS is in the "up" or extended position, ALWAYS use your seat belt to minimize chance of injury from an overturn accident.

DO NOT use seat belt when ROPS is folded down.

A-ROPS Post
B-Retaining Pin
C-Pin Clip

OUO6070,000001B -19-11OCT00-1/1
