Installing Rear Cast Iron Weights

IMPORTANT: Maximum number of weights that can be installed on rear tires is four (4) on each tire.

causym CAUTION: Rear weights weigh 55 kg (121 lb) each. Handle with care! Use appropriate equipment or have the job done by your John Deere dealer.

causym CAUTION: When installing or removing QUICK-TATCH weights, always position wheels so that weight retainer jaws are at the top. This prevents weights from falling when retaining bolt is removed.

NOTE: Spacers are required when weights won't fit into rim's dish. If weights do fit, spacers are optional.

1. Attach FIRST weight (A) to wheel disk, using three spacers (B) if necessary, with bolts, washers and nuts (C). Note that bolts go through first weight and into the rim so that washers and nuts tighten onto rim, not onto weights. This makes it easy to check regularly for tightness.

2. To install ADDITIONAL weights, position wheel so that one of retainer jaws (E) is at top. Hang next weight in retainer jaw and secure with bolt, washer and nut (D) as shown. Proceed in similar fashion with other additional weights, up to maximum allowable.

3. Tighten all bolt retaining nuts to specification. Tighten again after a few hours of service. Check tightness regularly.

Specification

Retaining Bolts -Torque 230 N·m (170 lb-ft)

P10192

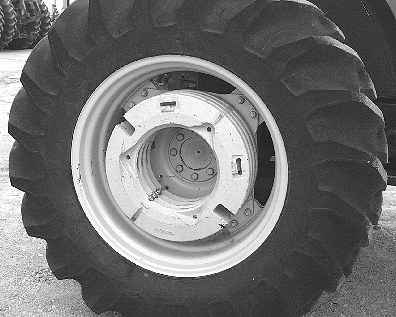

P10151

Four Maximum Weights Installed


A-First Weight
B-Spacer (3 Used)
C-First Weight Retaining Bolt, Washer and Nut (3 Sets Used)
D-Additional Weight Retaining Bolt, Washer and Nut
E-Retainer Jaws

OUO6070,000005F -19-12OCT00-1/1
