Using Warning Lights-Cab

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use hand signals or turn signal lights.

Use headlights, warning lights, and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere dealer.

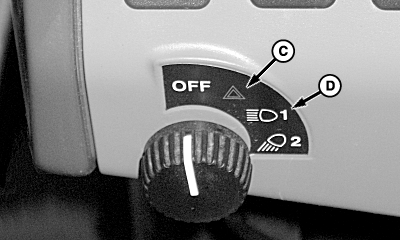

Warning lights (A and B) flash when switch is turned to warning light (triangle) position (C) position . They also flash when switch is in road lights position (D).

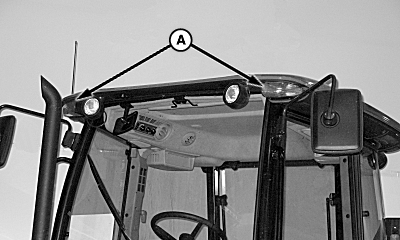

A-Front Warning Lights

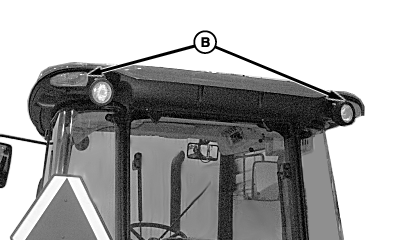

B-Rear Warning Lights
C-Warning Lights (Triangle)
D-Road Lights-1

PX03972,0000545 -19-17DEC08-1/1
