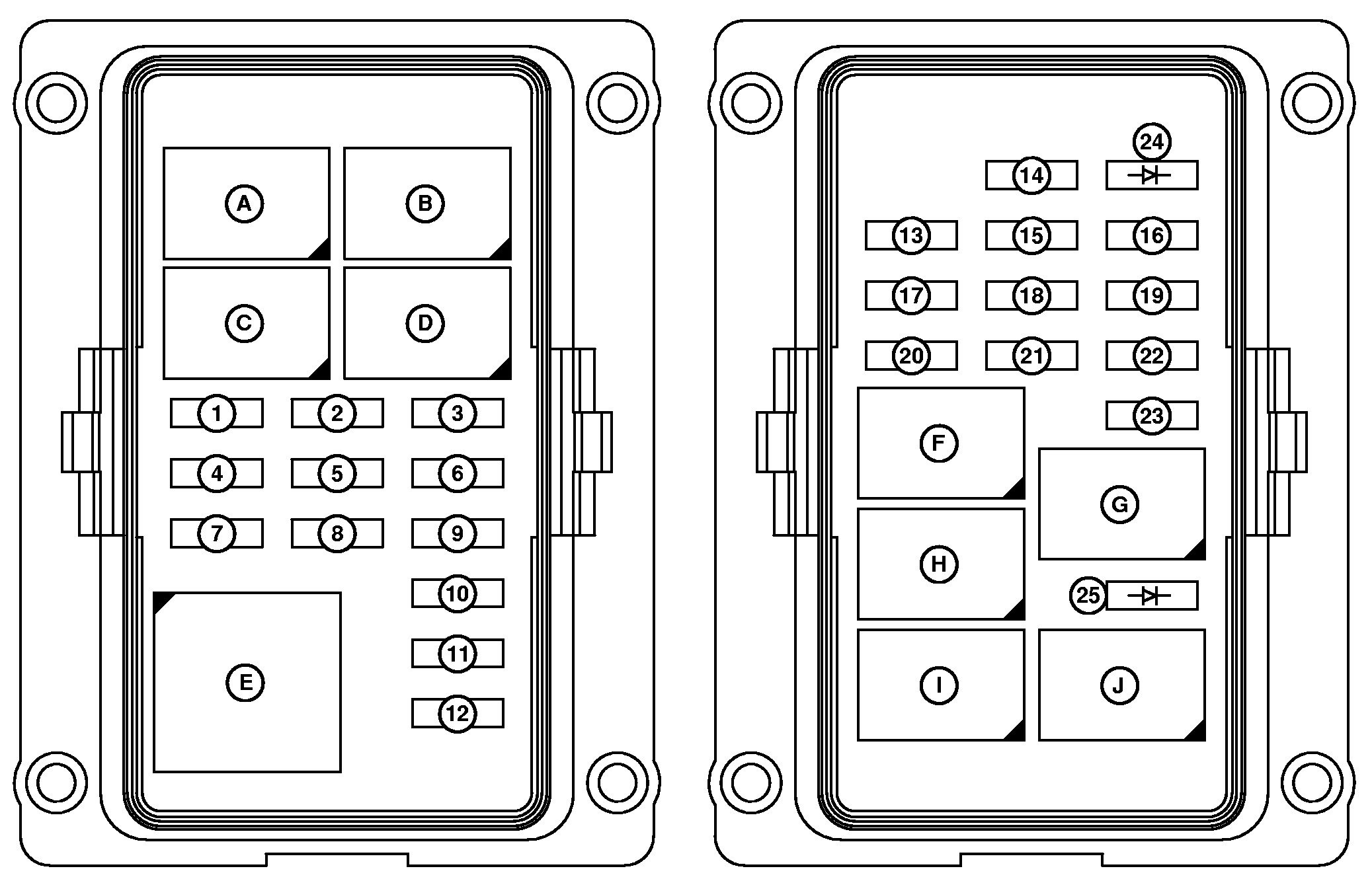

A-Left Turn Relay (K02)
B-Right Turn Relay (K03)
C-Left Flash Relay (K07)
D-Right Flash Relay (K27)
E-Turn/Hazard Relay (K05)
F-Not Neutral Relay (K16)
G-Transmission Enable (K17)
H-Transmission Controller Switched Power Relay (K24)
I-Fuel Flow Relay (K10)
J-Neutral Latch Relay (K12)
1-Key Switch Fuse (F01) - 30 A
2-Instrument Cluster Fuse (F02) - 10 A
|
3-Headlight Fuse (F03) - 15 A
4-Light Switch Fuse (F04) - 20 A
5-Tail, Brake, and Turn Light Fuse (F05) - 15 A
6-Turn Signal Fuse (F06) - 10 A
7-Unswitched Auxiliary Power Fuse (F10) - 30 A
8-Switched Auxiliary Power Fuse (F11) - 30 A
9-7-Pin Outlet Auxiliary Power Fuse (F12) - 30 A
10-Instrument Panel Fuse (F18) - 10 A
|
11-Rear Work Light Fuse (F07) - 30 A
12-Hazard Light Fuse (F24) - 30 A
13-Seat Switch and Horn Fuse (F28) - 10 A
14-Spare Fuse - 10 A
15-Backup Alarm Fuse (F27) - 5 A
16-PTR Controller; Switched Power Fuse (F20) - 10 A
17-Brake Light Fuse (F29) - 15 A
18-Spare Fuse - 20 A
|
19-Sensor Excitation Fuse (F21) - 10 A
20-Fuel Flow Relay Fuse (F30) - 10 A
21-Spare Fuse - 30 A
22-PTR Controller; Unswitched Power Fuse (F22) - 10 A
23-PowrReverser Lever Fuse (F25) - 10 A
24-Transmission Control Unit Relay Diode (V04)
25-Fuel Flow and Latch Relay Diode (V07)
|
