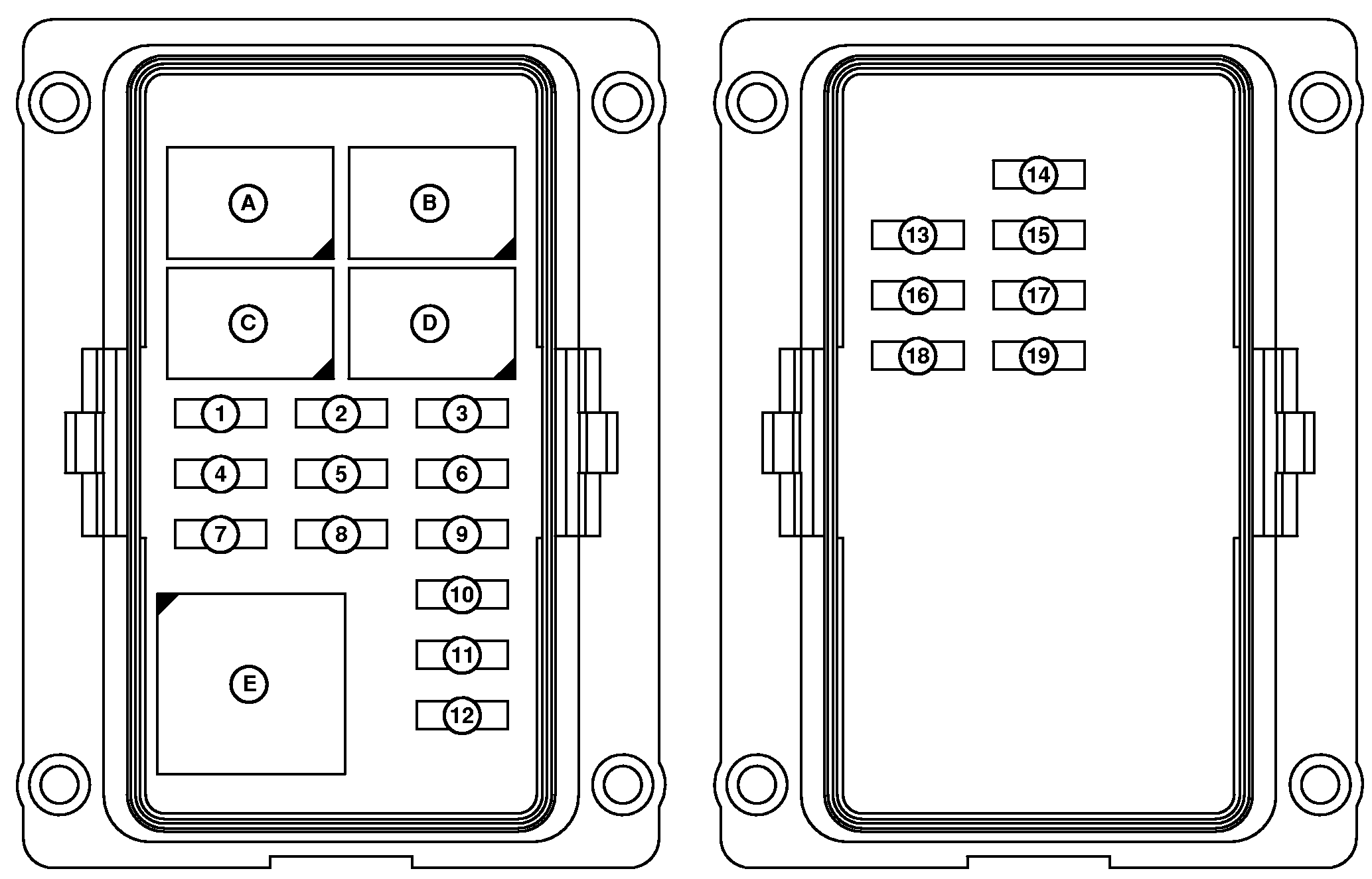

A-Left Turn Relay (K02)
B-Right Turn Relay (K03)
C-Left Flash Relay (K07)
D-Right Flash Relay (K27)
E-Turn/Hazard Relay (K05)
1-Key Switch Fuse (F01) - 20 A
2-ELX Fuse (F02) - 20 A
3-Headlight Fuse (F03) - 15 A
|
4-Light Switch Fuse (F04) - 20 A
5-Tail, Brake, and Turn Light Fuse (F05) - 10 A
6-Turn Signal Fuse (F06) - 10 A
7-Unswitched Auxiliary Power Fuse (F10) - 30 A
8-Switched Auxiliary Power Fuse (F11) - 30 A
|
9-7-Pin Outlet Auxiliary Power Fuse (F12) -30 A
10-Instrument Panel Fuse (F18) - 10 A
11-Rear Work Light Fuse (F07) - 30 A
12-Hazard Light Fuse (F24) - 30 A
13-Seat Switch and Horn Fuse (F28) - 10 A
|
14-Spare Fuse - 10 A
15-Spare Fuse - 15 A
16-Brake Light Fuse (F29) - 15 A
17-Spare Fuse - 20 A
18-ECU Fuse (F23) - 20 A
19-Spare Fuse - 30 A
|
