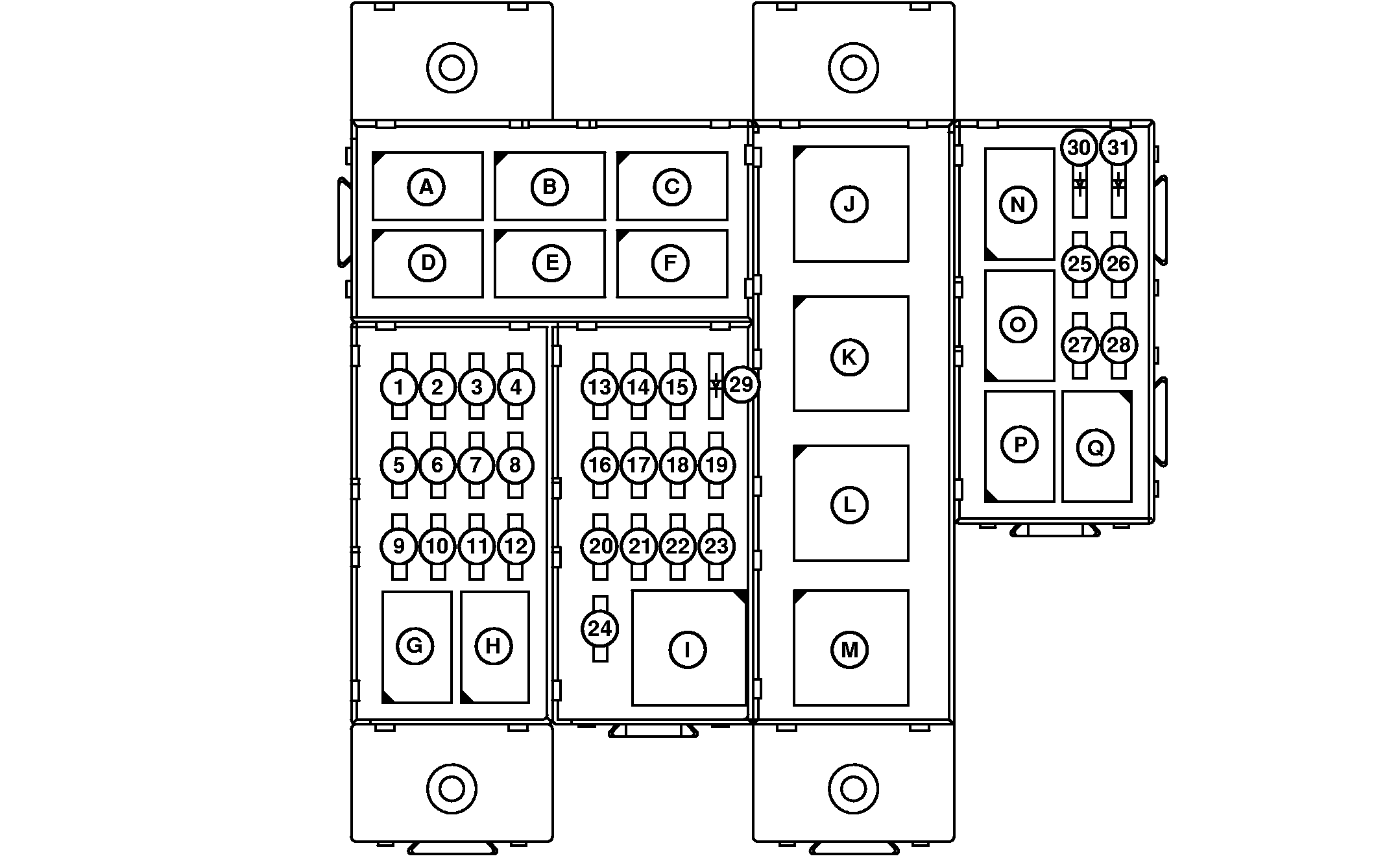

A-Right Flash Relay (K27)
B-Left Flash Relay (K07)
C-Right Blower Relay (K23)
D-Left Turn Relay (K02)
E-Right Turn Relay (K03)
F-Left Blower Relay (K22)
G-Neutral Latch Relay (K12)
H-Fuel Flow Relay (K10)
I-Turn/Hazard Relay (K05)
J-7-Pin Outlet Relay (K06)
K-Rear Work Light Relay (K08)
L-Front Work Light Relay (K09)
M-HVAC Relay (K20)
N-PTO Off/Neutral Relay (K04)
O-Not Neutral Relay (K16)
P-Transmission Enable Relay (K17)
Q-Transmission Controller Switched Power Relay (K24)
|
1-Key Switch Fuse (F01) - 30 A
2-Unswitched Auxiliary Power Fuse (F10) - 30 A
3-HVAC, Right Blower Purge Fuse (F13) - 30 A
4-Rear Work Light Fuse (F07) - 30 A
5-Hazard Light Fuse (F24) - 30 A
6-Instrument Panel Fuse (F18) - 10 A
7-Wiper Relay Fuse (F15) - 20 A
8-Front Work Light Fuse (F08) - 30 A
9-Light Switch Fuse (F04) - 20 A
10-7-Pin Outlet Auxiliary Power Fuse (F12) - 30 A
|
11-Left Blower Purge Fuse (F14) - 20 A
12-Seat Switch and Horn Fuse (F28) - 10 A
13-Unswitched Radio Power and Dome Light Fuse (F16) - 10 A
14-Turn Signal Fuse (F06) - 10 A
15-ELX Fuse (F02) - 10 A
16-Headlight Fuse (F03) - 15 A
17-Switched Auxiliary Power Fuse (F11) - 30 A
18-Brake Light Fuse (F29) - 15 A
19-Spare Fuse - 15 A
20-Fuel Flow Relay Fuse (F30) - 10 A
21-Switched Radio Power Fuse (F17) - 10 A
|
22-Tail, Brake, and Turn Lights Fuse (F05) - 15 A
23-Spare Fuse - 10 A
24-Diagnostic fuse
25-Sensor Excitation Fuse (F21) - 10 A
26-PTR Controller Unswitched Power Fuse (F22) - 10 A
27-PTR Controller Switched Power Fuse (F20) - 10 A
28-Spare Fuse - 30 A
29-Neutral Latch Relay Diode (V06)
30-Fuel Flow and Latch Relay Diode (V07)
31-Transmission Controller Relay Diode (V04)
|
