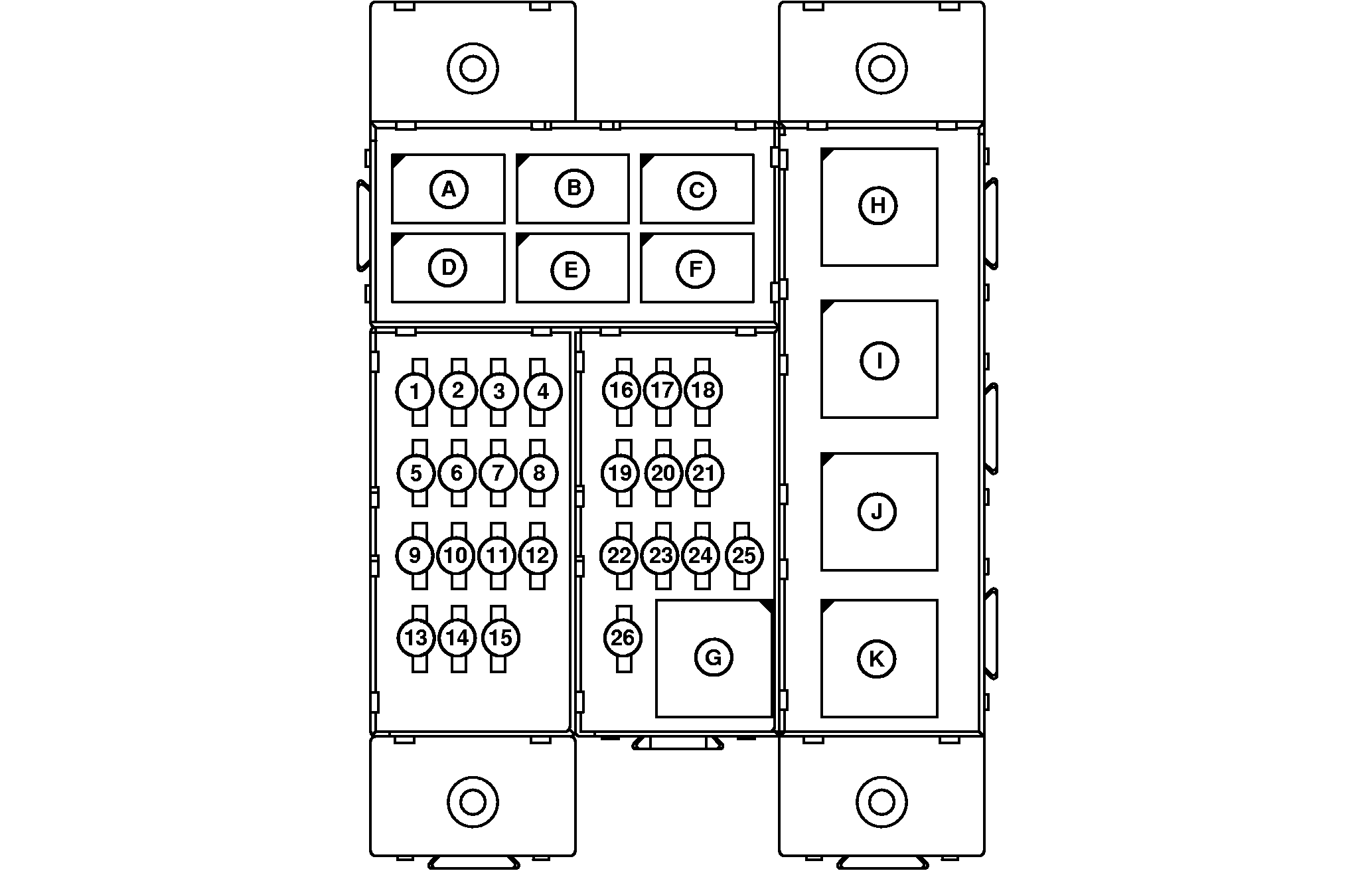

A-Right Flash Relay (K27)
B-Left Flash Relay (K07)
C-Right Blower Relay (K23)
D-Left Turn Relay (K02)
E-Right Turn Relay (K03)
F-Left Blower Relay (K22)
G-Turn/Hazard Relay (K05)
H-7-Pin Outlet Relay (K06)
I-Rear Work Light Relay (K08)
J-Front Work Light Relay (K09)
K-HVAC Relay (K20)
1-Key Switch Fuse (F01) - 30 A
2-Unswitched Auxiliary Power Fuse (F10) - 30 A
|
3-HVAC, Right Blower Purge Fuse (F13) - 30 A
4-Rear Work Light Fuse (F07) - 30 A
5-Hazard Light Fuse (F24) - 30 A
6-Instrument Panel Fuse (F18) - 10 A
7-Wiper Relay Fuse (F15) - 20 A
8-Front Work Light Fuse (F08) - 30 A
9-Light Switch Fuse (F04) - 20 A
|
10-7-Pin Outlet Auxiliary Power Fuse (F12) - 30 A
11-Left Blower Purge Fuse (F14) - 20 A
12-Seat Switch and Horn Fuse (F28) - 10 A
13-Spare Fuse - 30 A
14-Spare Fuse - 20 A
15-Spare Fuse - 15 A
16-Unswitched Radio Power and Dome Light Fuse (F16) - 10 A
17-Turn Signal Fuse (F06) - 10 A
|
18-ELX Fuse (F02) - 10 A
19-Headlight Fuse (F03) - 15 A
20-Switched Auxiliary Power Fuse (F11) - 30 A
21-Brake Light Fuse (F29) - 15 A
22-ECU Fuse (F23) - 20 A
23-Switched Radio Power Fuse (F17) - 10 A
24-Tail, Brake and Turn Light Fuse (F05) - 15 A
25-Spare Fuse - 10 A
26-Diagnostic fuse
|
