Operating Foldable ROPS

causym CAUTION: Make certain all parts are installed correctly if roll over protective structure (ROPS) is loosened or removed for any reason. Tighten mounting bolts to proper torque. (See specification in ROPS MAINTENANCE OR REPLACEMENT, in General Maintenance and Inspection section.)

The protection offered by ROPS will be impaired if ROPS is subjected to structural damage, as in an overturn incident, or is in any way altered by welding, bending, drilling or cutting. A damaged ROPS must be replaced, not reused. Any alteration to the ROPS must be approved by the manufacturer.

Always keep upper part of ROPS pinned in vertical position (as shown) when operating tractor. If tractor is operated with ROPS folded (e.g., to enter a low building), drive with extreme caution and DO NOT use seat belt.

Raise ROPS up again and pin in vertical position as soon as the tractor is operated under normal conditions.

Lower ROPS Crossbar

1. Remove pin clips and retaining pins (B).

2. Using handlebar (C), lower ROPS crossbar (A).

3. Reinstall retaining pins and pin clips into holes (D) in ROPS to lock crossbar down.

Put ROPS in Operating Position

1. Remove pin clips and retaining pins.

2. Using handlebar, raise ROPS crossbar to vertical position.


A-ROPS Crossbar
B-Pin Clip and Retaining Pin
C-Handlebar
D-Hole

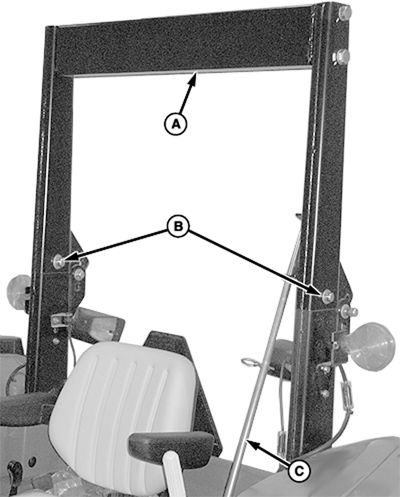

P15216A

Operating Position

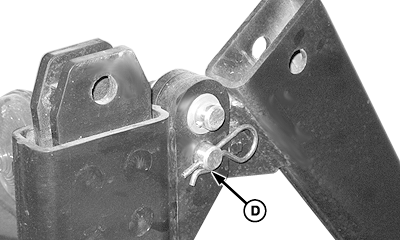

P15217

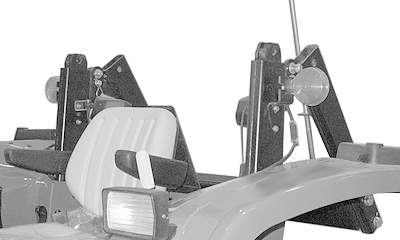

P15218

ROPS Folded

PX03972,0000558 -19-18DEC08-1/2

3. Reinstall retaining pins and pin clips into holes in ROPS to lock crossbar.

PX03972,0000558 -19-18DEC08-2/2
