Before Starting the Engine

causym CAUTION: Prevent asphyxiation by providing adequate ventilation. If operating indoors, use an exhaust pipe extension to remove the exhaust fumes or open doors and windows to thoroughly ventilate the area.

1. Standard Transmission: Put gear shift lever (B) in NEUTRAL.

Transmission with PowrReverser™: Put lever (D) in NEUTRAL.

2. PTO: Pull lever (A) back to disengaged position (shown).

3. Rockshaft: Push hitch control lever (C) forward.

4. Turn key to RUN position.

  • All indicator bulbs light momentarily
  • Check fuel level gauge to be sure tractor has plenty of fuel
  • Charging system (battery) and Neutral (N) indicators stay on
  • Numbers display in hour meter window
  • An audible "beep" will sound briefly

If any indicator does not function properly, see your John Deere dealer.

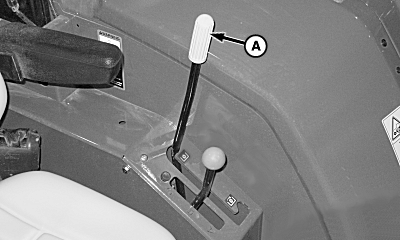

A-PTO Lever

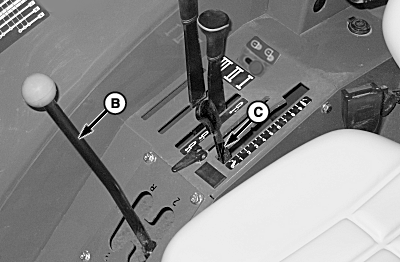

B-Gear Shift Lever
C-Hitch Control Lever
D-PowrReverser Lever (If Equipped)

TS220
P14860
P14861B
P14862

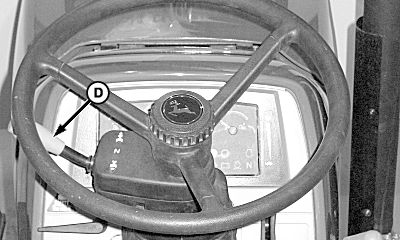

PowrReverser Lever (If Equipped)

PX03972,000055C -19-18DEC08-1/1
