Using Power Beyond Attachment (If Equipped)IMPORTANT: Only hydraulic motors requiring high flow at low pressure can be used on open center hydraulic systems. Do not use with motors requiring low flow at high pressure, oil will overheat and cause damage to hydraulic system. See your nearest John Deere dealer for more information on hydraulic motor applications. Power Beyond is used as a pressure/flow source for auxiliary functions equipped with independent flow control valves. Use Power Beyond when:

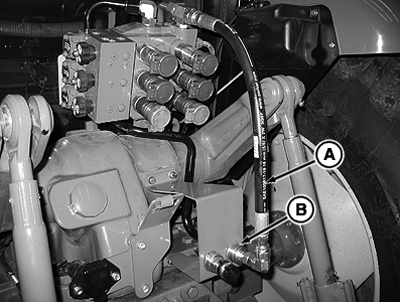

Power beyond is designed for operations where continuous high volume, low pressure oil flow is needed. IMPORTANT: Power beyond must either be kept in the storage position as shown (return hose plugged into coupler) or attached to implement pressure and return circuit. Not connecting in this manner will cause tractor to overheat. To use power beyond feature, push in on hose (A) to remove from coupler (B) and attach to implement's "return" port. To complete the hydraulic circuit, attach implement's "pressure" hose to open coupler (B). When not in use, plug hose end into coupler for storage. Power Beyond Kit is available from your John Deere dealer. |
|
PX03972,0000564 -19-18DEC08-1/1 |
