Using Adjustable PTO Shield (If Equipped)

CAUTION: Avoid personal injury. The PTO shield must be in the correct position at all times. Do not use shield as a step.

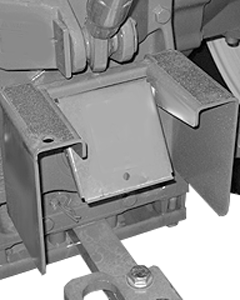

Lowered position: Normal position. Drawbar visibility is improved for attaching an implement.

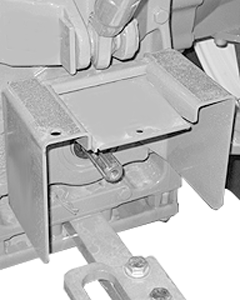

Center position: Use with PTO-driven implements.

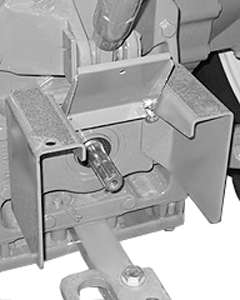

Raised position: Provides clearance while connecting implement driveline to the PTO shaft.

Move the PTO shield to center position before engaging PTO.

PX03972,0000567 -19-18DEC08-1/1
