Towing Tractor

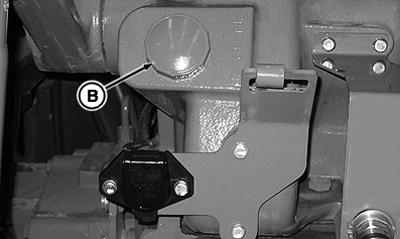

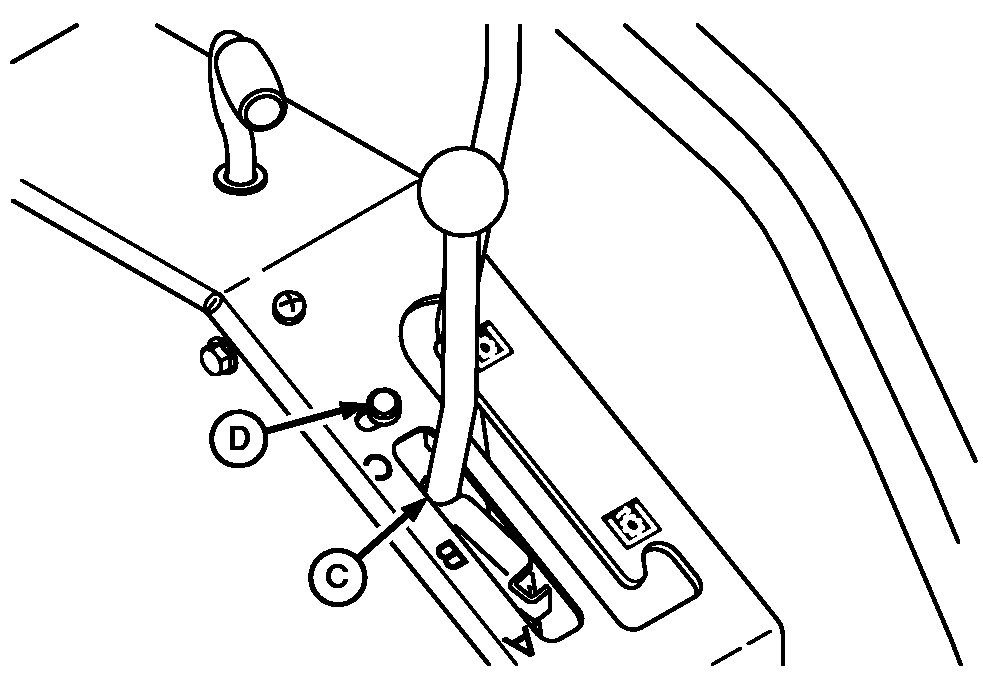

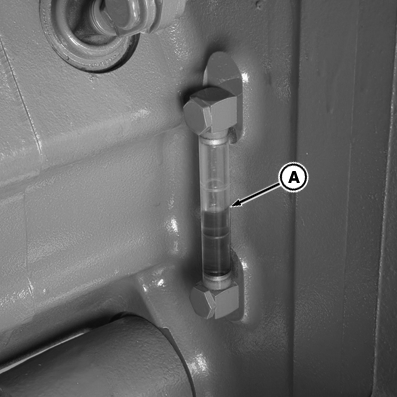

IMPORTANT: To avoid damaging transmission/hydraulic system, observe the following precautions prior to towing tractor: 1. Be sure transmission/hydraulic system oil is up to the full level line on sight glass (A). If the tractor is to be towed with the front wheels raised, add 1 liter (1 qt) of oil to hydraulic fill port (B) for each 90 mm (3-1/2 in.) the wheels are raised. Do not raise front wheels more than 305 mm (12 in.) above ground. NOTE: After transporting tractor, drain oil that was added for towing. 2. Make sure differential lock is disengaged and gear shift lever is in neutral position, "N". 3. Range selector lever must be placed in tow lock position (C), located between B and C range marks. Loosen lock knob (D) to bring locking plate out into range slot. Move range lever into lock position, then tighten lock knob down. Range gearbox is now locked in neutral so no power can be transmitted to rear wheels.
|
|
CAUTION:
Never tow tractor faster than 16 km/h (10 mph). Have an operator steer and brake tractor.
PX03972,0000568 -19-18DEC08-1/1 |
