Preparing Implement

Category II implements should have the top hole of the implement mast located 610 mm (24 in.) above the lower pins. Drill another hole in top mast or extend top mast if necessary.

Mast Height Width Between Lower Pins Pin Size
    Lower Upper
610 mm
(24 in.)		 824 mm
(32-7/16 in.)		 28 mm
(1-1/8 in.)		 25.4 mm
(1 in.)


P10112

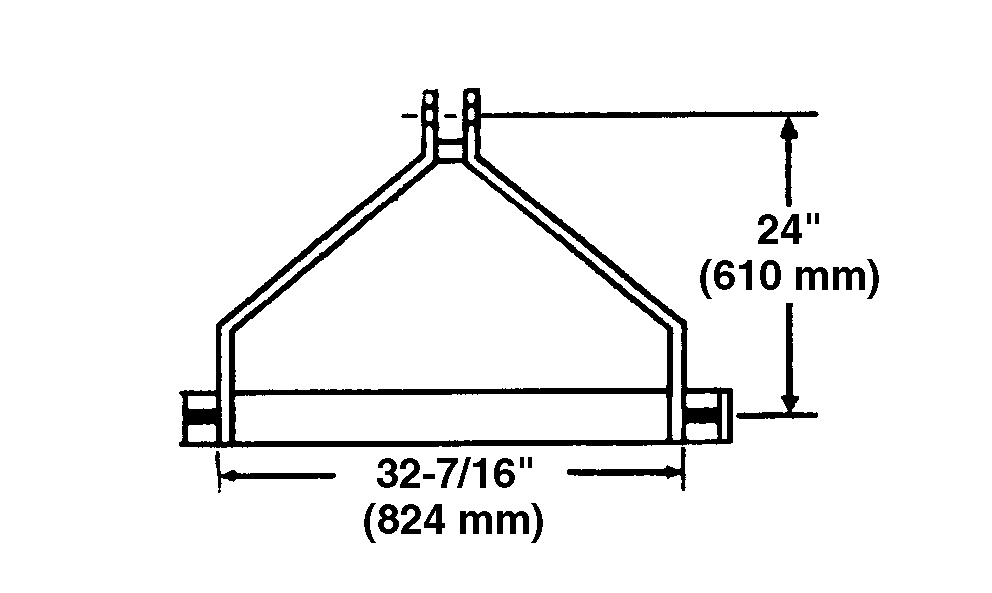

Implement Mast
