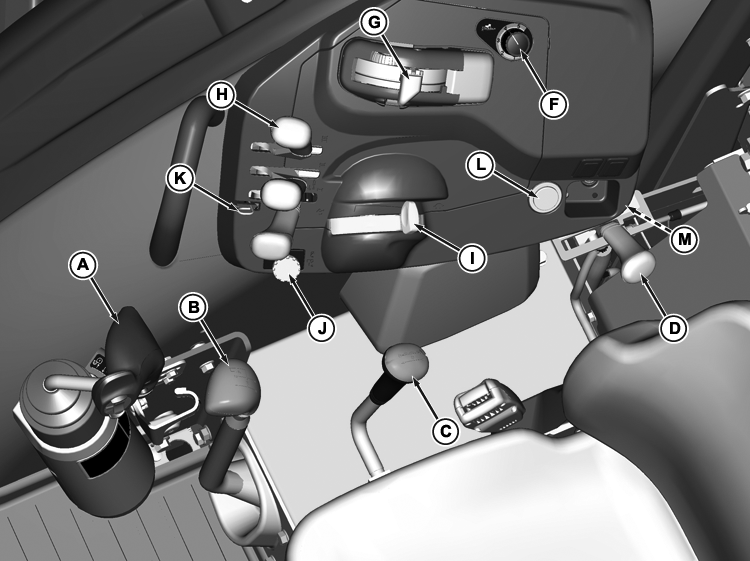

Right-Hand Console Controls-Open Operator's Station

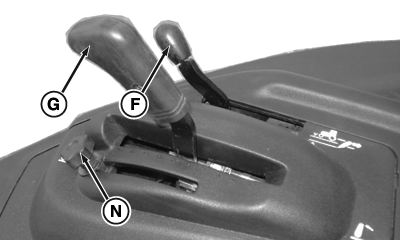

Mechanical hitch control

Rear hitch rate of drop knob

A-Speed shift lever B-Multifunction control lever (if equipped) C-Range shift lever D-PTO speed shift lever (if equipped)

E-Rear hitch rate of drop knob (located behind seat) F-Rear hitch draft control lever/knob G-Rear hitch position control lever

H-Selective control valve levers (if equipped) I-Hand throttle J-PTO engagement switch K-SCV lockout lever

L-Power outlet M-Convenience outlet (if equipped) N-Rear hitch position control lever stop wheel

AJ20558,000004A -19-02SEP09-1/2

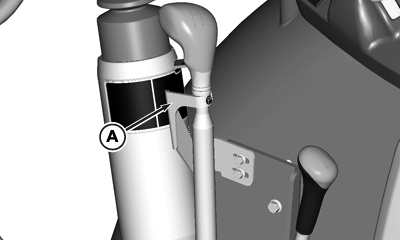

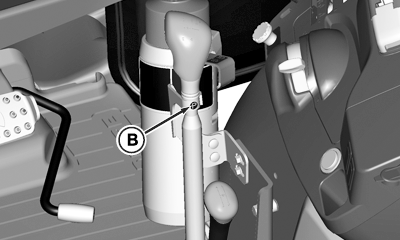

NOTE: Ensure speed lever is placed into park position before operator leaves seat. A-Park position bracket B-Speed lever in park position

Park position bracket Speed lever in park position
