Observe Engine Operation

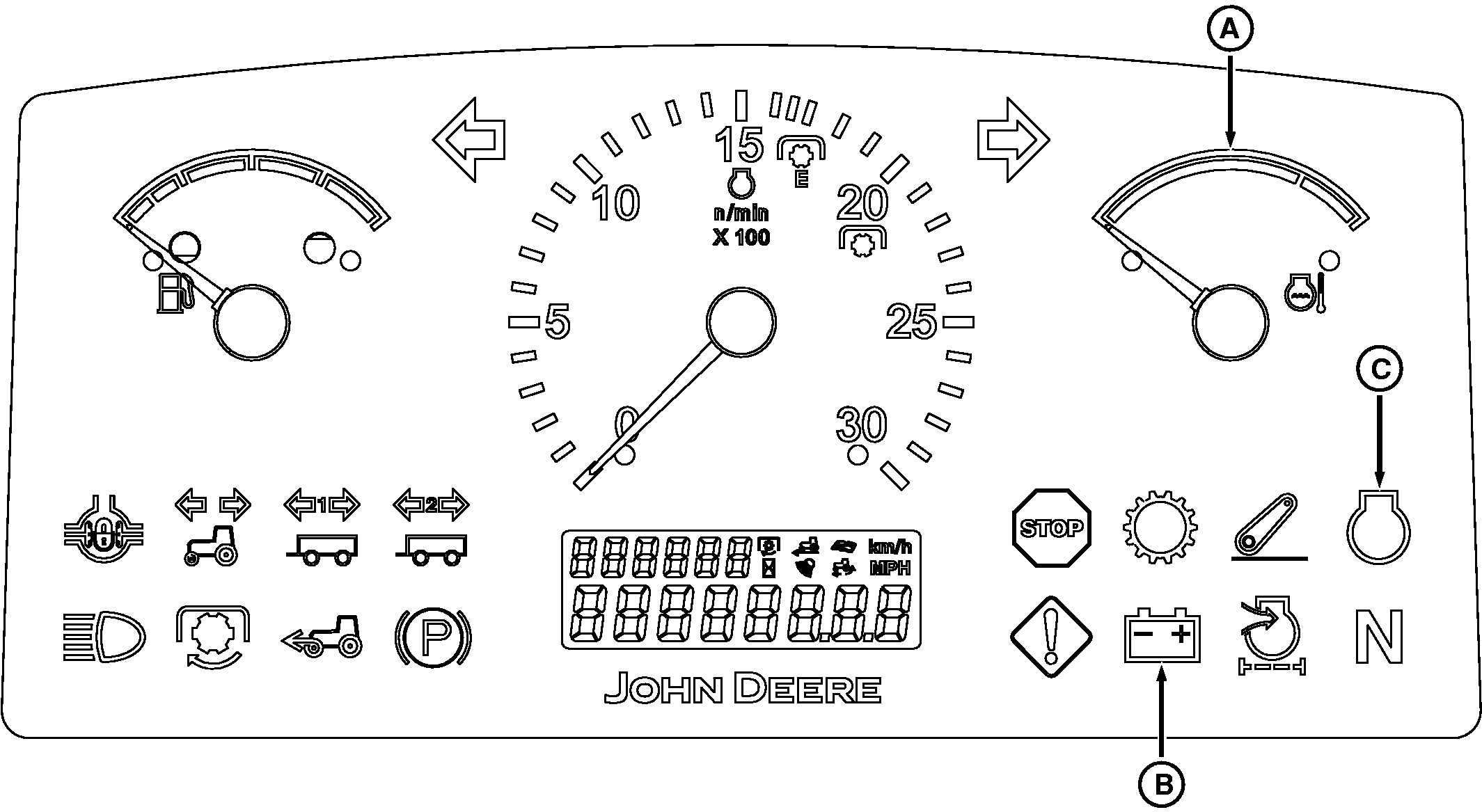

A-Engine coolant temperature gauge

B-Battery charging indicator

C-Engine oil pressure indicator

IMPORTANT: Use extra caution during the first 100 hours to become thoroughly familiar with the sound and feel of your new tractor. Warm up tractor and check coolant temperature gauge (A), oil pressure (C), charging (B), and warning indicators.

Avoid unnecessary engine idling. Check fluid levels frequently for engine oil, coolant, transmission-hydraulic oil, and mechanical front-wheel drive oil (if equipped). Watch for fluid leaks. NOTE: If engine oil is added, use seasonal viscosity grade oil.

AJ20558,0000291 -19-02JUN09-1/1
