Service Daily Before Start-Up

IMPORTANT: Do not operate when oil level is below lower mark on dipstick.

NOTE: Refer to Maintenance Guide for additional information.

1. Check engine oil level. Wipe dipstick (A) off and reinsert it fully. Remove and check oil level.

2. If operating in extremely wet or muddy conditions, lubricate the following at the 10-hour service interval with multipurpose grease:

  • Front axle pivot pin
  • Steering spindles and cylinder ends (adjustable front axle)
  • King pins (MFWD)
  • Rear axle bearings

3. Lubricate with multipurpose grease:

  • Hood latch
  • Operator's seat slide rails

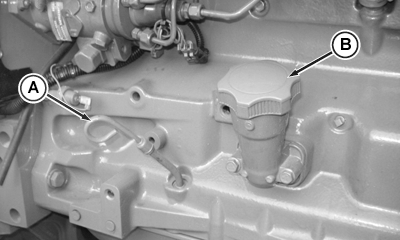

PULV004476


A-Engine oil dipstick
B-Engine oil filler cap

AJ20558,0000292 -19-13JUN09-1/1
