Come Home Mode Operation-If Equipped

Come home mode is available with PowrReverser ™ and PowrReverser Plus ™ transmissions only.

NOTE: Under certain circumstances, the tractor can still be driven even if there is an electrical fault in the transmission.

IMPORTANT: If come home mode is active and operator has been out of the seat for more than 1 second, transmission will return to NEUTRAL position.

To enter come home mode:

1. Operator has to get out of the seat and sit down again.
2. Reverser lever (FNR) should be in NEUTRAL position.
3. Remove F36 fuse from fuse and relay panel.

In come home mode, diagnostic trouble code (DTC) 523966.31 will be displayed at information display (A) and transmission information indicator (B) will flash on instrument panel.

To drive tractor : Depress clutch pedal and shift the reverser lever from neutral to desired direction.
During come home mode, all available speeds and ranges are allowed. However, tractors equipped with PowrReverser Plus ™ are restricted to low speeds only.

To stop tractor : Depress clutch pedal and shift reverser lever to NEUTRAL.

NOTE: During come home mode, maximum engine speed is limited to 1500 rpm.

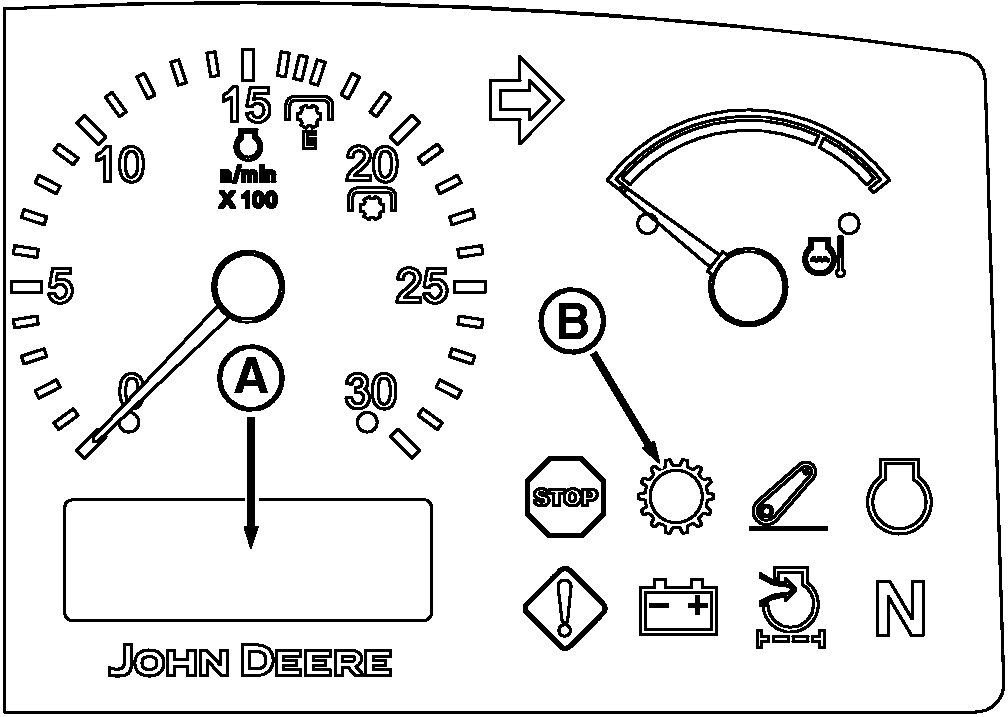

PULV004534

Come home mode indication


A-Information display
B-Transmission information indicator

PowrReverser is a trademark of Deere & Company
PowrReverser Plus is a trademark of Deere & Company

AJ20558,0000296 -19-09JUN09-1/1
